| TYPE | DESCRIPTION |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | OBSOLETE |

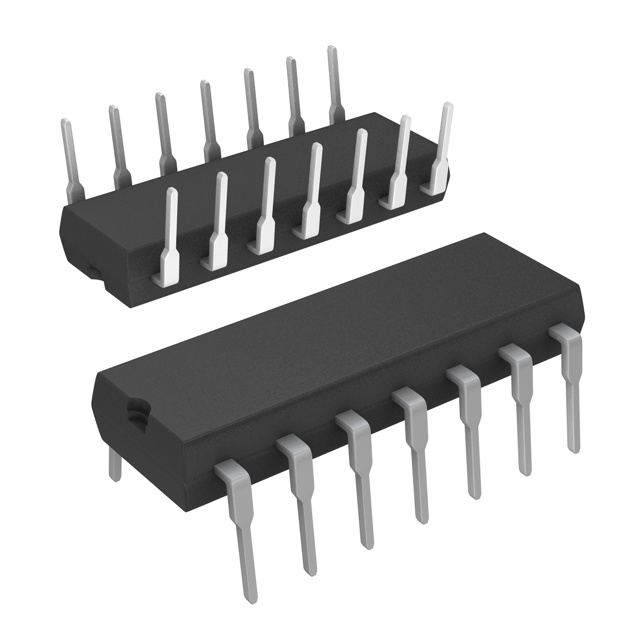

| Package / Case | 14-DIP (0.300", 7.62mm) |
| Output Type | CMOS, DTL, ECL, MOS, Open-Collector, TTL |
| Mounting Type | Through Hole |
| Number of Elements | 4 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Single/Dual (±) | 2V ~ 28V, ±1V ~ 14V |
| Supplier Device Package | 14-PDIP |
| Current - Quiescent (Max) | 2.5mA |
| Voltage - Input Offset (Max) | 20mV @ 28V |
| Current - Input Bias (Max) | 0.5µA @ 5V |
| Current - Output (Typ) | 16mA @ 5V |
